Seiko design, Seiko building, elegant and solemn shape.
Using Cree, Lumileds original LED chip + international well-known brand driving power, long life, low depreciation.
Multi-channel convection heat dissipation technology, high heat dissipation module design, fast and uniform heat dissipation.
Independent electric box and module, drive with waterproof fast interface plug, can be replaced on the spot, convenient maintenance.
The design of patent double lightning protection to ensure the normal use of lamps and lanterns under bad weather conditions.
Elevation adjustable installation design, multi diameter lamp arm installation interface, adapt to various road transformation.
The luminaire has strong illumination, good color display, soft light and good uniformity.
Return
Using Cree, Lumileds original LED chip + international well-known brand driving power, long life, low depreciation.
Multi-channel convection heat dissipation technology, high heat dissipation module design, fast and uniform heat dissipation.
Independent electric box and module, drive with waterproof fast interface plug, can be replaced on the spot, convenient maintenance.
The design of patent double lightning protection to ensure the normal use of lamps and lanterns under bad weather conditions.
Elevation adjustable installation design, multi diameter lamp arm installation interface, adapt to various road transformation.
The luminaire has strong illumination, good color display, soft light and good uniformity.
 | 技術規格書 | Doc.No.： | |||||||||||||||||||

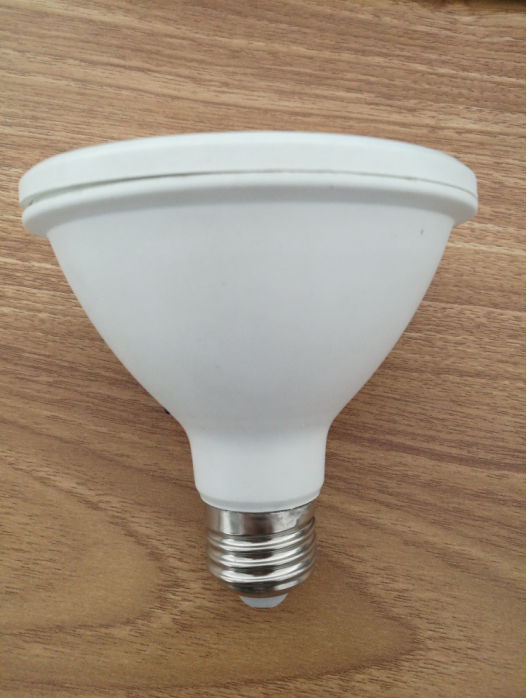

| Par30燈/11W/3000K/E27/100-250V/塑包鋁/12SMD/PF0.9/IC/950LM/RA80/過EMC/過巴西認證/LUZ | 編制日期 | 2017-4-1 | |||||||||||||||||||
| JK | 1/2頁(Page) | ||||||||||||||||||||
| 成品編碼 | 99.205.1.2.102 99.205.1.6.102 | ||||||||||||||||||||
| 1 | 基本規格 General specifications | ||||||||||||||||||||
| 單位 | 指 標 Value | ||||||||||||||||||||
| 1> | 產品類型 Product type | / | Par30-11W | ||||||||||||||||||
| 2> | 發光角度 Beam angle | degree | 38 | ||||||||||||||||||
| 3> | 安全標準 Safety assurance | / | GB 24906 | ||||||||||||||||||
| 4> | 調光非調光 Dimmable or non_dimmable | / | 非調光 | ||||||||||||||||||
| 5> | 燈頭材料 Base Material | E27 | / | 鋁鍍鎳 | |||||||||||||||||
| 6> | 泡殼材料 Bubble Material | / | PC+鋁 | ||||||||||||||||||
| 2 | 光電參數 Performance Parameters | Unit | 最小Min | 額定Spec | 最大Max | 測試條件(Test Condition) | |||||||||||||||
| 1> | 電源電壓 Supply Voltage | Vrms | 100 | 220 | 250 | 額定電壓下，25±2℃，燈頭向上，點亮1小時穩定后測試 rated voltage,25±2℃, Base Up test after 0.5 hours light-on and stable (燈珠焊盤溫度是96.1度）1000H<15%光蓑 | |||||||||||||||
| 2> | 電源頻率 Input Frequency | Hz | 50 | 50 | 50 | ||||||||||||||||
| 3> | 輸入電流 Input Current | Arms | 0.044 | 0.054 | 0.088 | ||||||||||||||||
| 4> | 輸入功率 Input Power | W | 9.9 | 11 | 12.100 | ||||||||||||||||
| 5> | 功率因數 Power Factor | λ | >0.7 | >0.7 | / | ||||||||||||||||
| 6> | 工作頻率 Ballast Operation Frequency | kHz | 65kHz-80kHz | ||||||||||||||||||
| 7> | 光通量 luminous Flux | 2700K | lm | / | / | / | |||||||||||||||
| 3000K | lm | 855 | 950 | / | |||||||||||||||||
| 4000k | lm | 900 | 1000 | / | |||||||||||||||||
| 6500k | lm | 900 | 1000 | / | |||||||||||||||||
| 8> | 顯色指數 Colour rendering index | Ra | ＞80 | / | / | ||||||||||||||||
| 9> | 平均壽命 Lifetime ( 70% failure ) | hrs | 15000 | / | / | ||||||||||||||||
| 10> | 電磁兼容 | EMC | ok | ||||||||||||||||||
| 3 | 產品外形尺寸 Product figure and dimension | 單位 | 指 標 Value | ||||||||||||||||||
| Unit | 最小Min | 額定Spec | 最大Max | 備注 | |||||||||||||||||
| 1> | 燈總長Overall Lamp Length(A) | E27 Base | mm | 94.6 | 95 | 95.4 | |||||||||||||||
| 2> | 燈總寬Overall Lamp Wide(B) | / | mm | 94.8 | 95 | 95.2 | |||||||||||||||
| 3> | 泡殼外徑 Overall Housing Diameter(C) | mm | 94.8 | 95 | 95.2 | ||||||||||||||||
 | |||||||||||||||||||||
| 版本號 | 修改日期 | 修改理由 | 設計 | 審核 | 會簽 | 審批 | |||||||||||||||
| 1.0 | 2017-4-1 | 初版 | |||||||||||||||||||
